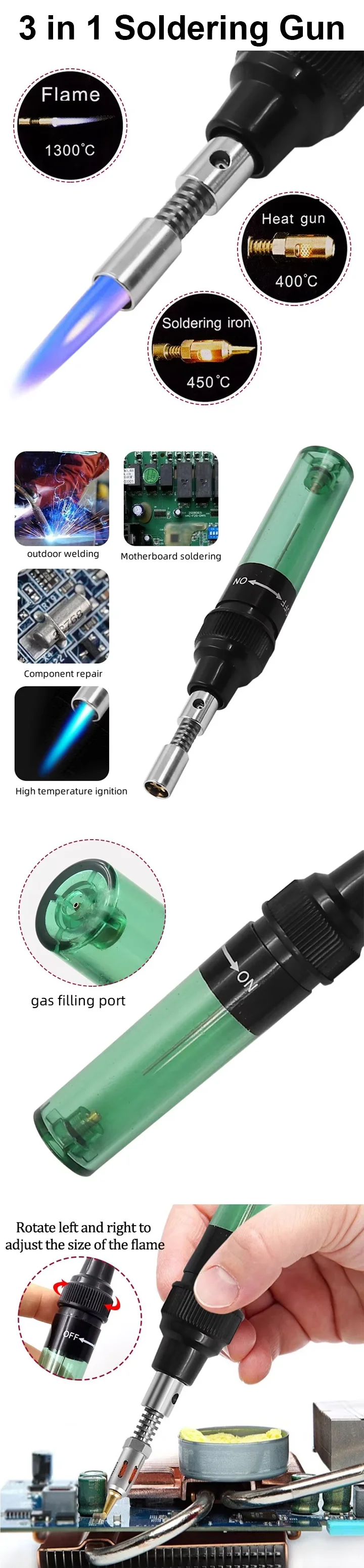

Specifications:
- Color: Translucent green
- Weight: about 95 grams
- FILLING CAPACITY: 8ML
- Material: Body; plastic, soldering iron tip; Metal.
- Temperature: Flame temperature 1300°C (adjustable) Soldering iron temperature 450°C (adjustable)
- Fuel used: Pure butane GAS (This gas soldering iron does not have automatic ignition, it must be ignited by a lighter.) )
- Packing: card packaging The color of the actual product shall prevail, and there is an error!!
Paper size: 19×2.2x8xm
Packing box size: 200 sets per carton, outer carton size: 37x37x31cm weight per carton: about 15kg
1. Filling gas
1. Use gas to fill, and confirm that the switch is turned off at OFF, and then replenish.
2. Introduce the gas tank into the air hole and press down to inflat.
3. About 10 seconds, you can complete the filling of gas, wait for a few minutes, wait for the gas to stabilize, and then use.
4. If there is a hissing sound at the tail after the gas is injected, it can be eliminated by pressing the tip of the pen slightly
into the air port.
2. Introduce the gas tank into the air hole and press down to inflat.
3. About 10 seconds, you can complete the filling of gas, wait for a few minutes, wait for the gas to stabilize, and then use.
4. If there is a hissing sound at the tail after the gas is injected, it can be eliminated by pressing the tip of the pen slightly
into the air port.
2. Ignition
1. Replace the soldering iron tip
2. Push the switch to the ON place and hear the “hiss” sound.
3. Push the electronic switch to ignite.
4. Burn for 3 minutes after igniting the fire, and the soldering iron tip will continue to heat when the fire is extinguished.
5. Adjust the size of the flame;
6. The temperature of this product is as high as 1300 degrees (soldering iron temperature is 450 degrees), you need to pay
attention to safety when using, and turn off the switch to the OFF position after use.
7. When using a gas soldering iron, please pay special attention to wait until the flame is completely eliminated and the object in the soldering iron turn red before operating to prolong the life of the soldering iron.3. Precautions:1. Replace the joint, please wait for it to cool down before replacing or replacing it in advance.
2. The soldering iron tip in use is high temperature and hot, do not touch it with your hands.
3. The adjustment button can control the gas output and temperature, which can usually be placed in the middle position.
4. After use, wait for cooling, and then collect it, do not place it in a high temperature place or direct sunlight.
5. Children should not use it, and it must be placed in a proper place when collecting.
6. Please use high-quality canned gas to fill, and keep it away from the fire source when filling.
7. Because the gas is more or less slag, it is necessary to clean the nozzle frequently.
8. When cleaning, press and spray the nozzle on the gas outlet of the gas tank to achieve the cleaning effect.
9. Avoid heavy falls.
2. Push the switch to the ON place and hear the “hiss” sound.
3. Push the electronic switch to ignite.
4. Burn for 3 minutes after igniting the fire, and the soldering iron tip will continue to heat when the fire is extinguished.
5. Adjust the size of the flame;
6. The temperature of this product is as high as 1300 degrees (soldering iron temperature is 450 degrees), you need to pay
attention to safety when using, and turn off the switch to the OFF position after use.
7. When using a gas soldering iron, please pay special attention to wait until the flame is completely eliminated and the object in the soldering iron turn red before operating to prolong the life of the soldering iron.3. Precautions:1. Replace the joint, please wait for it to cool down before replacing or replacing it in advance.
2. The soldering iron tip in use is high temperature and hot, do not touch it with your hands.
3. The adjustment button can control the gas output and temperature, which can usually be placed in the middle position.
4. After use, wait for cooling, and then collect it, do not place it in a high temperature place or direct sunlight.
5. Children should not use it, and it must be placed in a proper place when collecting.
6. Please use high-quality canned gas to fill, and keep it away from the fire source when filling.
7. Because the gas is more or less slag, it is necessary to clean the nozzle frequently.
8. When cleaning, press and spray the nozzle on the gas outlet of the gas tank to achieve the cleaning effect.
9. Avoid heavy falls.
